Mission Modular Pergola

$9,999.00

These structures are modular in that the pergola can be expanded by adding more posts, thereby creating a much larger structure.
Each of the styles can exist as just one segment, creating a gateway type entrance: consisting of two posts, two brackets, a main beam and a series of short rafters. A typical pergola however consists of four posts and the respective sizes are listed below.
The size of these pergolas make them extremely well suited for covering decks, patios, hot tubs and terraces, as well as gardens and walkways.
All of the modular pergolas are very easy to install and are shipped via UPS for our standard shipping charge.
Categories: ,

Description

Our Mission Modular Pergola is 8’10” x 10′ on center, post to post, and is the quintessential Craftsman style pergola offering understated sophistication.
The pergola consists of 7″ to 5″ tapered posts with plinth bases and tapered and rounded capital inserts.
The main beams are 3″ x 7″ and are connected to each other by a detailed assembly, all supported by eight brackets.
The rafters are a sturdy 1½” x 5″ piece notched over the main beams with added rafter tail profiles.
As with all of the modular pergolas, the Mission Modular Pergola is available in larger sizes by adding additional posts.
$9,999 for 8’10” x 10′ on center (post to post)

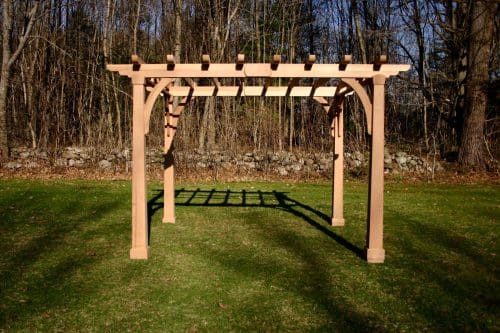

four posted pergola (as shown)
